SNMP/Modbus DC Power Sensor

How It Works Tech Specs

Power Over Ethernet (PoE) - Web - Modbus - SNMP - SNMP Traps - Email - SMS - Voice Call - Rack Mountable - Industrial Grade

no pc required for the ServersCheck to operate once configured

- Plug & Play DC sensor.
- 0-56 VDC.
- powered by the base unit.

Integrates with SNMP and Modbus TCP into your monitoring or building management systems.

Alerting via email, SNMP Traps, SMS and voice calls.

How it works.

Illustration showing how the current sensor works

The optional green clamp is put around the power cable (max 300A) that you want to monitor. The clamp is screwed into the orange sensor controller. The sensor connects to a base unit (SensorGateway) using a standard network cable. The network cable tranmits data and power between the base unit and the sensor. The maximum distance between a sensor and the base unit is 100m/330ft when using a CAT6/7 cable.

Technical Specifications PWR-DC-VOLT

DC Power Current Sensor Probe (PWR-DC-VOLT)
	Input Current: 0-300A DC with optional PWR-DC-TRANS.
	Non-linerarity: +/- 3%.
	Voltage: 0-56V DC
	Current Accuracy: 1A
	Readings in A (Ampere), V, W & kWh.
	Split Core Certification: CE, RoHS.
	Operating humidity range: < 90% rH (non-condensating).
	Dimensions: 74 mm (2.9") x 66 mm (2.59") x 22 mm (0.8").

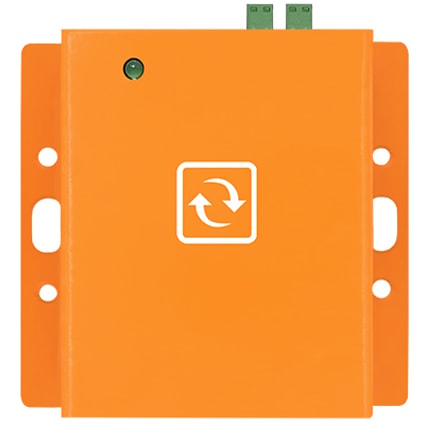

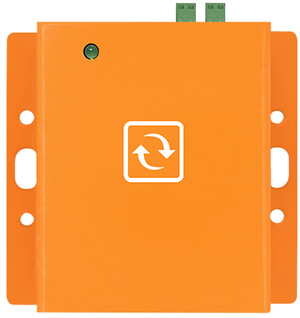

	Housing: Orange plastic case with status led.
	0U Rack & DIN Rail mountable.
	The SensorGateway is required for this sensor. Requires SensorGateway v5.1+ with firmware 8+
	Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP
	Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) Operating humidity range: < 90% rH (non-condensating).
	Sensor connects via regular straight RJ45 cable to the SensorGateway. Maxmimum distance between probe and SensorGateway is 100m/330ft when using a CAT6 or CAT7 cable (subject to cable quality and interference)
