Fuel Leak Detection Sensor

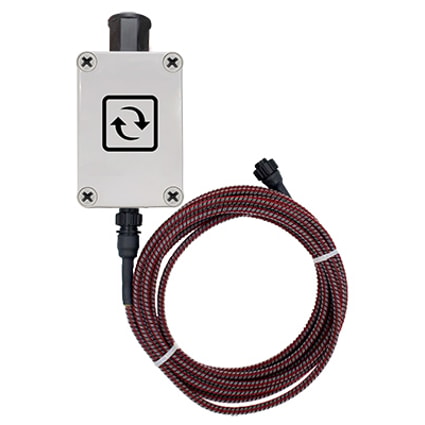

ServersCheck Fuel Leak Sensor


Power Over Ethernet (PoE) - Web - SNMP - SNMP Traps - Modbus - Email - SMS - Voice Call - Rack Mountable - Industrial Grade
non-relevant transparent gif
Generators are deployed to provide backup power to facilities like server rooms, data centers, cel sites or remote telecom rooms. The generators are mostly powered through fossile fuels.

The IP, Modbus & SNMP based fuel leak cable can detected following fuel types:
no pc required for the ServersCheck to operate once configured
Fuel typeTypical response time at 20C (68F)
#1 diesel fuel60 minutes
#2 diesel fuel120 minutes
Gasoline12 minutes
JP5 jet fuel70 minutes
JP8 jet fuel50 minutes
Jet-A jet fuel50 minutes


ServersCheck offers a low cost sensor for monitoring fuel leaks 24x7 from fuel tanks for generators or fuel pipes.

The default cable length is 20ft / 6m and can be extended to 100ft / 30 m. The fuel leak sensing cable is designed for single use only.

The fuel leak sensing cable may be used in Class I, Division 2, Groups A, B, C, D Hazardous Locations. If wiring from module meets requirements for intrinsic safety, sensing cable may be used in Class I, Division 1, Groups A, B, C, D Hazardous Locations (Zone 0 or Zone 1 in Europe).

The fuel leak cable has following certifications:
List of certifications for the fuel sensing cable
non-relevant transparent gif
Technical Specifications

Technical Specifications - Fuel Leak Sensor Probe (ENV-FLEAK-COMBO)
Operating temperature range: 0C to +75C (32F to +167F) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Fuel sensor small Sensor Housing Dimensions: 65 mm (2.5") x 95 mm (3.74") x 55 mm (2.16")
Sensor Housing Material: IP 65 plastic housing
Sensor Housing Colour: light gray
RJ45 cable Gland protection rating: IP 68
Fuel Leak Detection Cable: 6meter - 20ft cable (single use only)
Cable can be extended to 330ft - 120m
Cable can't be reused after detection and should be replaced.
Fuel typeTypical response time at 20C (68F)
#1 diesel fuel60 minutes
#2 diesel fuel120 minutes
Gasoline12 minutes
JP5 jet fuel70 minutes
JP8 jet fuel50 minutes
Jet-A jet fuel50 minutes
Provides a WET/DRY indication in SensorGateway
SensorGateway small The SensorGateway is required for this sensor.
Requires SensorGateway v5.1+ with firmware 7+

Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP
Base Unit Operating temperature range: 0C to +75C (32F to +167F)
Operating humidity range: < 90% rH (non-condensating).
RJ45 small Connects via regular straight RJ45 cable to the SensorGateway.
Maxmimum distance between probe and SensorGateway is 10m/33ft
