Motion Sensor

InfraSensing Motion Sensor



non-relevant transparent gif
no pc required for the ServersCheck to operate once configured

non-relevant transparent gif

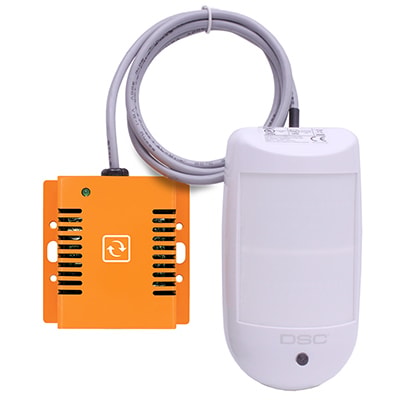

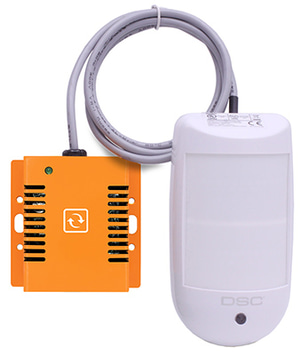

Motion Sensor Probe (SEC-MOTION)
Wall mountable motion sensor (screw mount)
Replaceable Optical Chamber Makes Any Required Cleaning a Snap
Probe dimensions: 74 mm (2.9") x 66 mm (2.59") x 22 mm (0.8")
Probe housing: Orange metal case with status led
Probe mounting: 0U Rack (screw mount)
The SensorGateway is required for this sensor.
Requires SensorGateway v5.1+ with firmware 8+
Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF)
Operating humidity range: < 90% rH (non-condensating).
Sensor connects via regular straight RJ45 cable to the SensorGateway.
Maxmimum distance between probe and SensorGateway is 100m/330ft when using a CAT6 or CAT7 cable (subject to cable quality and interference)
