Multi-Sensor & Hubfor monitoring server rooms & remote cabinets
for monitoring server rooms & remote cabinets

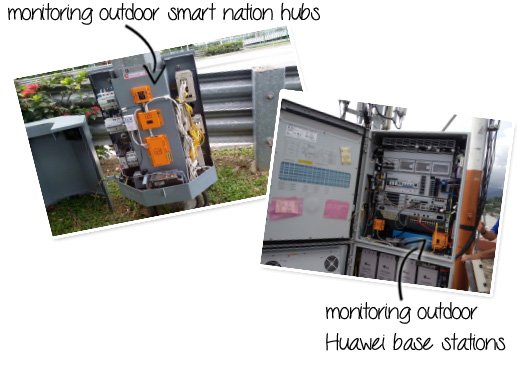

Originally designed for monitoring remote distributed network hubs for the IDA Smart Nation project in Singapore, the Multi-Sensor & Hub is the result of a long analysis of what a sensor box should be able to monitor inside a server room or remote cabinet.
The unique device is an expansion hub for our sensorgateways, the base unit. The base unit plugs into this device so that you have all into one housing.
It comes with the 10 most commonly required sensor metrics for server rooms, MDF/IDF sites & other edge infrastructure sites:
The unique device is an expansion hub for our sensorgateways, the base unit. The base unit plugs into this device so that you have all into one housing.
It comes with the 10 most commonly required sensor metrics for server rooms, MDF/IDF sites & other edge infrastructure sites:
- temperature
- humidity
- dew point
- shock
- sound
- motion
- power failure
- luminosity (light in Lux)
- smoke sensor
- water leak sensor incl 6ft sensing cable
- humidity
- dew point
- shock
- sound
- motion
- power failure
- luminosity (light in Lux)
- smoke sensor
- water leak sensor incl 6ft sensing cable
Next to the above sensors, the unit features 8 dry contact inputs for legacy sensors and equipment. It also features 4 dry contract outputs allowing you to control 3rd party equipment such as HVAC units, generators, ...
Last but not least, the device is a sensor hub: you can expand the device with up to 5 sensors: 4 digital sensors and 1 analog sensor.
10 Sensors - 7 Dry Contact In & 4 Out - Modbus - SNMP - SNMP Traps - Email - SMS - Voice Call - Rack Mountable - Industrial Grade
Technical Specifications
| Technical Specifications - MultiSensor & Hub (EXP-4HUB) | Expansion ports for external sensor probes: 4 digital and 1 analog sensor |
| Dry contact input ports: 8 | |
| Dry contact output ports: 4 (digital sink 100mA) | |
| Auxillary supply: maximum current capacity of 500mA at 9 to 12 VDC | |
| Power consumption: 650 milliWatts | |
| Dimensions: 160 mm (6.3") x 165 mm (6.5") x 60 mm (2.4") | |
| Housing: Orange metal casing with one LED status indicators | |
| Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode | |
| Specifications of on board sensors: | |
| Temperature Resolution: 0.1°C (0.18)°F precision | |
| Temperature Accuracy: +/- 0.5ºC (+/- 0.9 ºF) over 0ºC to +60ºC | |
| Readings in Celsius or Fahrenheit | |
| Relative Humidity Measurement Range: 0 to 100 % RH | |
| Relative Humidity Resolution or precision: 0.1 % RH and 1 % RH | |
| Relative Humidity Accuracy: +/- 2 % RH between 10 % RH to 90 % RH and +/- 4 % RH below 10 % RH and above 90 % RH | |
| Relative Humidity Long Term Stability: < 1 % RH/year | |
| Sound (db) Resolution: 1 db precision | |
| Luminosity Resolution: 0.5 Lux precision | |
| Vibration unit: G force | |
| Minimum value: 1G | |
| The SensorGateway is required for this sensor. Requires SensorGateway v5.1+ with firmware 8+ | |
| Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP | |
|
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) Operating humidity range: < 90% rH (non-condensating). | |
| Sensor connects via regular straight RJ45 cable to the SensorGateway. Maxmimum distance between probe and SensorGateway is 100m/330ft when using a CAT6 or CAT7 cable (subject to cable quality and interference) |
|
Designed for remote cabinets
& small server rooms.
& small server rooms.
Multi sensor solution to monitor most threats posed to remote critical facilities with a small (almost) squared box.
Device preloaded with 10 sensor metrics
temperature,
humidity,
dew point,
shock,
sound,
motion,
smoke,
power failure &
luminosity, water leak - all in one box
Hub for additional sensors.
Connect up to 4 additional digital sensors and 3 dry contact sensors. Expand it with our other environmental, power or security sensors.
