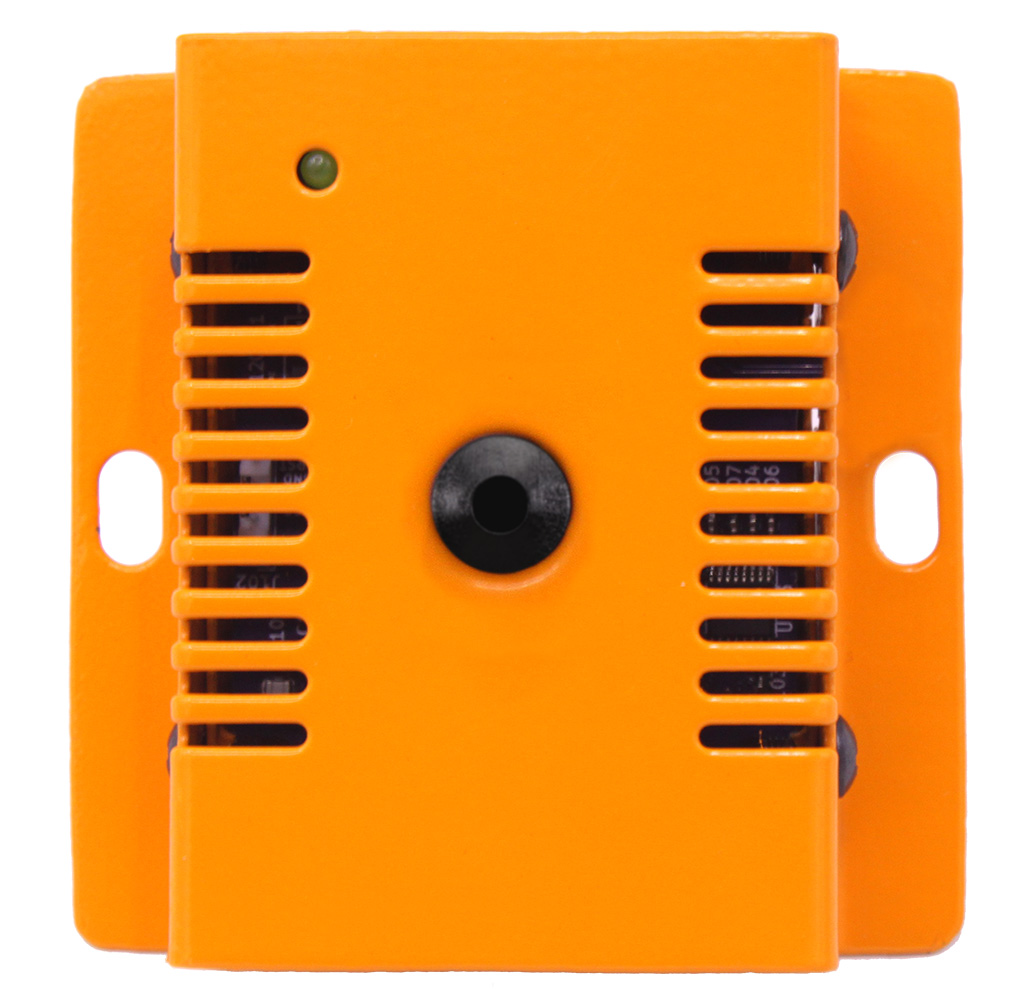

Daisy Chained Infrared Spot Sensorcontactless temperature monitoring
contactless temperature monitoring
Some of our customers:
key sensor features
Industrial digital SNMP & Modbus TCP sensor designed for contactless temperature monitoring inside enclosures. Daisy chain up to 20 IR spot temperature sensors.
- single zone contactless temperature sensor
- reports average temperature from objects within its field of view
- measures object temperatures from -70°C to +380°C
- resolution: 0.02°C
- with a ±0.5% accuracy from 0°C-50°.
- 3 different versions: 5°, 12° 35°
- compact plug & play sensor.
- designed for indoor use.
- steel enclosure for non-power sensors or non-IP sensors.
- custom color & logo options available.
- industrial grade.
- 0u rack, DIN rail, magnetic or wall mountable sensor.
- plugs into the base unit.
- powered by the base unit (PoE, 12v DC, optionally 24v or -48v)
- alerts via SNMP Traps, email or SMS.
- out of the box integration via Modbus TCP, SNMP.
- optional integration via MQTT for Industrial IoT applications1
.
- optional integration via RS-485 enabling direct integration with your own gateway & controllers.2
1Requires BASE-XXX-6
2Some sensors are not available in RS-485 native versions. In that case RS-485 is available using the optional Modbus RTU module.
- single zone contactless temperature sensor- reports average temperature from objects within its field of view
- measures object temperatures from -70°C to +380°C
- resolution: 0.02°C
- with a ±0.5% accuracy from 0°C-50°.
- 3 different versions: 5°, 12° 35°
- compact plug & play sensor.
- designed for indoor use.
- steel enclosure for non-power sensors or non-IP sensors.
- custom color & logo options available.
- industrial grade.
- 0u rack, DIN rail, magnetic or wall mountable sensor.
- plugs into the base unit.
- powered by the base unit (PoE, 12v DC, optionally 24v or -48v)
- alerts via SNMP Traps, email or SMS.
- out of the box integration via Modbus TCP, SNMP.
- optional integration via MQTT for Industrial IoT applications1
.- optional integration via RS-485 enabling direct integration with your own gateway & controllers.2
1Requires BASE-XXX-6
2Some sensors are not available in RS-485 native versions. In that case RS-485 is available using the optional Modbus RTU module.
Contactless bus bars monitoring
Mounted on the inside of your power panels, the contactless IR spot sensor monitors the temperature of your power control cabinets (such as Automatic Transfer Switches). Instead of doing periodic thermal IR auditing of your power infrastructure, monitor it 24x7 with this sensor.
No PC or Software Required
The InfraSensing sensors connect to the base unit (BASE-5). The base unit is a standalone device that has its own IP address in your network. On its own it will monitor the sensor and trigger alerts via email, SNMP or optional SMS when needed.
There is no software or PC required for the sensors to run.
With our optional Monitoring Software you can centrally monitor sensors with trending and more. This is optional and not required.
How It works.
The DAISY-STARTER connects to the the base unit. Up to 20 DAISY-IRSPOT sensors can be connected to the DAISY-STARTER using simple RJ45 cables. This makes the device an ethernet contactless IR sensor to monitor temperature in enclosures. Alerting via email, SMS, voice call. Integrates with BMS platforms using the Modbus TCP protocol. Or with NMS systems through SNMP GET and SNMP TRAPS.
