Digital sound & noise level (db) sensor

Temperature Sensor

OSHA HCAHPS
non-relevant transparent gif
key sensor features
no pc required for the ServersCheck to operate once configured - compact plug & play sensor.
- connects to & powered by the base unit.

- sensor accuracy ±1db
- sensor range from 10db to 90db.
- monitor noise levels as per OSHA requirements or for HCAHPS
- alerts via SNMP Traps, email, SMS or voice calls.

- 0U rack, din rail or wall mountable.
- designed for indoor use.
- steel inclosure
- industrial grade.

Power Over Ethernet (PoE) - Web - Modbus - SNMP - SNMP Traps - Email - SMS - Voice Call - Rack & DIN rail mountable - Industrial Grade
non-relevant transparent gif Some of ServersCheck's customers:

ServersCheck Internet Technology Companies customers
ServersCheck Technology Companies customers
ServersCheck customers from the Finance Industry
Some of ServersCheck's government customers
non-relevant transparent gif
workplace noise level monitoring
OSHA requirements
Hearing loss icon
The Occupational Safety and Health Administration requires the implementation of a noise monitoring system when sound levels are at or above 85db. This sensor will enable you to implement such a monitoring in a simple and cost effective way.

Data centers can produce noise levels of 70db at the lower end of the scale and up to 88db+ at peak moments; clearly above the OSHA limits. To be effective, sound sensors should be deployed across the data center and at head level.

There is no cure for hearing loss due to noise levels. Monitoring can help you get an understanding of those sound levels and take the steps needed to prevent hearing loss.
non-relevant transparent gif
Healthcare noise level monitoring
HCAHPS scoring
The WHO (World Health Organization) recommends noise levels of up to 30 decibels in hospitals. However actual levels may be much higher than that. The measured levels impact the HCAHPS scoring. Using our simple IP based sensors, healthcare facilities can objectively monitor noise levels across their hospital.
Hospital icon
non-relevant transparent gif
Technical Specifications

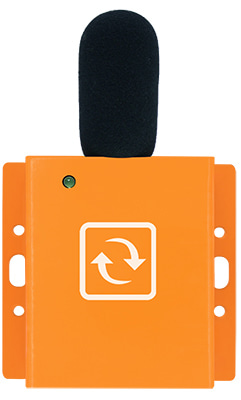

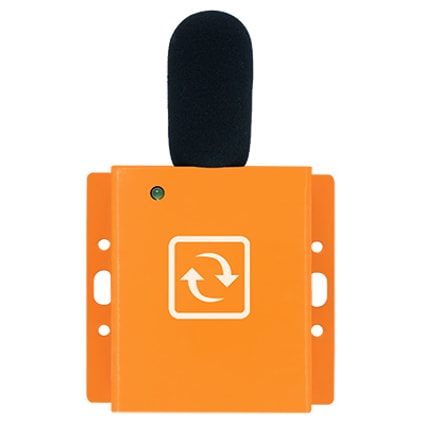

Technical Specifications - Sound Sensor Probe (SEC-SOUND)
Sound sensor small Sound (db) Resolution: 1 db precision
Sensor range: from 10db to 90db
Dimensions: 74 mm (2.9") x 66 mm (2.59") x 22 mm (0.8")
Housing: Orange metal case with status led
SensorGateway small The SensorGateway is required for this sensor.
Requires SensorGateway v5.1+ with firmware 7+

Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP
Base Unit Operating temperature range: 0C to +75C (32F to +167F)
Operating humidity range: < 90% rH (non-condensating).
RJ45 small Sensor connects via regular straight RJ45 cable to the SensorGateway.
Maxmimum distance between probe and SensorGateway is 100m/330ft when using a CAT6 or CAT7 cable (subject to cable quality and interference)
non-relevant transparent gif
About the Sound Sensor Probe.

Data Centers, server rooms, equipment rooms are all running with most of the time nobody in there. Everything is monitored by staff from another room. Often when something goes wrong a loud noise may be heard (loud bang, fans making abnormal sound, ...) Who will notice if no one is in the facility? No one.

To improve monitoring, we developed a digital sound meter probe that continously monitors the decibels in the room it is installed at. You let the sensor run to get the normal sound level of your room and set the maximum (or minimum) alarm level in decibels accordingly. By connecting the sensor to the base unit, you have an ip and ethernet enabled sensor that runs on its own. No other software or hardware required.

Of course the more racks or equipment you have the more of the sound sensors you'll need as an abnormal noise may be heard in the vincity of the location where the incident occured, but may not be heard on the other side of the room.
